# Back-Door Criterion (p150)

Authors: Aymen Merrouche and Pierre-Henri Wuillemin.

This notebook follows the example from “The Book Of Why” (Pearl, 2018) chapter 4 page 150

## Back-Door Criterion

In [1]:

from IPython.display import display, Math, Latex,HTML

import pyAgrum as gum
import pyAgrum.lib.notebook as gnb
import pyAgrum.causal as csl
import pyAgrum.causal.notebook as cslnb
import os


In a causal diagram, confounding bias is due to the flow of non-causal information between treatment $$X$$ and outcome $$Y$$ through back-door paths. To neutralize this bias, we need to block these paths. To block a non-causal path, we must perform an adjustment operation for a variable or a set of variables that would block the flow of information on that path. Such a set of variables satisfies what we call the “back-door” criterion. A set of variables $$Z$$ satisfies the back-door criterion for $$(X, Y)$$ if and only if: * $$Z$$ blocks all back-door paths between $$X$$ and $$Y$$. A “back-door path” is any path in the causal diagram between $$X$$ and $$Y$$ starting with an arrow pointing towards $$X$$. * No variable in $$Z$$ is a descendant of $$X$$ on a causal path, if we adjust for such a variable we would block a path that carries causal information hence the causal effect of $$X$$ on $$Y$$ would be biased.

If a set of $Z$ variable satisfies the back-door criterion for $$(X,Y)$$, the causal effect of $$X$$ on $$Y$$ is given by the formula:

$P(y \mid do(x)) = \sum_{z}{P(y \mid x,z) \times P(z)}$

### Example 1:

In [2]:

e1 = gum.fastBN("X->A->Y;A->B")
e1

Out[2]:

In [3]:

m1 = csl.CausalModel(e1)
cslnb.showCausalImpact(m1, "Y", doing="X",values={})


Causal Model
$$\begin{equation*}P( Y \mid \text{do}(X)) = \sum_{A}{P\left(A\mid X\right) \cdot \left(\sum_{X'}{P\left(Y\mid A\right) \cdot P\left(X'\right)}\right)}\end{equation*}$$
Explanation : frontdoor ['A'] found.
Y
X
0
1
0
0.20860.7914
1
0.26340.7366

Impact
In [4]:

# This function returns the set of variables which satisfies the back-door criterion for (X, Y)
# None if there are no back-door paths.
setOfVars = m1.backDoor("X","Y")
print("The set of variables which satisfies the back-door criterion for (X, Y) is :", setOfVars)

The set of variables which satisfies the back-door criterion for (X, Y) is : None


No incoming arrows into X, therefore there are no back-door paths between $$X$$ and $$Y$$ (as if we did a graph surgery according to the do operator), direct causal path $$X \rightarrow A \rightarrow Y$$.

### Example 2:

In [5]:

e2 = gum.fastBN("A->B->C;A->X->E->Y;B<-D->E")
e2

Out[5]:

In [6]:

m2 = csl.CausalModel(e2)
gnb.show(m2)

In [7]:

cslnb.showCausalImpact(m2, "Y", doing="X",values={})


Causal Model
$$\begin{equation*}P( Y \mid \text{do}(X)) = \sum_{E}{P\left(E\mid X\right) \cdot \left(\sum_{X'}{P\left(Y\mid E\right) \cdot P\left(X'\right)}\right)}\end{equation*}$$
Explanation : frontdoor ['E'] found.
Y
X
0
1
0
0.82450.1755
1
0.42070.5793

Impact
In [8]:

# This function returns the set of variables which satisfies the back-door criterion for (X, Y)
# None if there are no back-door paths.
setOfVars = m2.backDoor("X","Y")
print("The set of variables which satisfies the back-door criterion for (X, Y) is :", setOfVars)

The set of variables which satisfies the back-door criterion for (X, Y) is : None


There is one back-door path from $$X$$ to $$Y$$ :

$X \leftarrow A \rightarrow B \leftarrow D \rightarrow E \rightarrow Y$

We don’t need to control for any set of variables; this back-door path is blocked by collider node $$B$$ (two incoming arrows)

$A \rightarrow B \leftarrow D$

Controlling for collider node $$B$$ would open this causal path (controlling for colliders increases bias), direct causal path $$X \rightarrow E \rightarrow Y$$.

### Example 3:

In [9]:

e3 = gum.fastBN("B->X->Y;X->A<-B->Y")
e3

Out[9]:

In [10]:

m3 = csl.CausalModel(e3)
cslnb.showCausalImpact(m3, "Y", doing="X",values={})


Causal Model
$$\begin{equation*}P( Y \mid \text{do}(X)) = \sum_{B}{P\left(Y\mid B,X\right) \cdot P\left(B\right)}\end{equation*}$$
Explanation : backdoor ['B'] found.
Y
X
0
1
0
0.31130.6887
1
0.57850.4215

Impact
In [11]:

# This function returns the set of variables which satisfies the back-door criterion for (X, Y)
# None if there are no back-door paths.
setOfVars = m3.backDoor("X","Y")
print("The set of variables which satisfies the back-door criterion for (X, Y) is :", setOfVars)

The set of variables which satisfies the back-door criterion for (X, Y) is : {'B'}


There is one back-door path from $$X$$ to $$Y$$ :

$Y \leftarrow B \rightarrow X$

We need to block it by controlling for $$B$$ wich satisfies the back-door criterion.

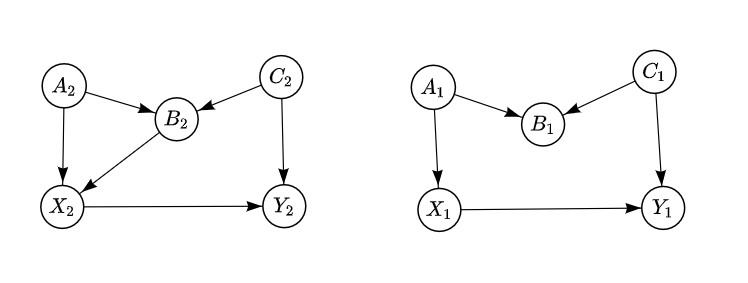

### Example 4 (M-bias):

In [12]:

e4 = gum.fastBN("X<-A->B<-C->Y")
e4

Out[12]:

In [13]:

m4 = csl.CausalModel(e4)
cslnb.showCausalImpact(m4, "Y", doing="X",values={})


Causal Model
$$\begin{equation*}P( Y \mid \text{do}(X)) = P\left(Y\right)\end{equation*}$$
Explanation : No causal effect of X on Y, because they are d-separated (conditioning on the observed variables if any).
Y
0
1
0.28260.7174

Impact
In [14]:

# This function returns the set of variables which satisfies the back-door criterion for (X, Y)
# None if there are no back-door paths.
setOfVars = m4.backDoor("X","Y")
print("The set of variables which satisfies the back-door criterion for (X, Y) is :", setOfVars)

The set of variables which satisfies the back-door criterion for (X, Y) is : None


There is one back-door path from $$X$$ to $$Y$$ :

$X \leftarrow A \rightarrow B \leftarrow C \rightarrow Y$

We don’t need to control for any set of variables, this back-door path is blocked by collider node $$B$$, the two variables are d-separated, deconfounded, independent. Controlling for collider node $$B$$ would make them dependant (introducing the M-bias).

### Example 5:

In [15]:

e5 = gum.fastBN("X<-B<-A->X->Y<-C->B")
e5

Out[15]:

In [16]:

m5 = csl.CausalModel(e5)
cslnb.showCausalImpact(m5, "Y", doing="X",values={})


Causal Model
$$\begin{equation*}P( Y \mid \text{do}(X)) = \sum_{C}{P\left(Y\mid C,X\right) \cdot P\left(C\right)}\end{equation*}$$
Explanation : backdoor ['C'] found.
Y
X
0
1
0
0.41090.5891
1
0.85350.1465

Impact

In [17]:

# This function returns the set of variables which satisfies the back-door criterion for (X, Y)
# None if there are no back-door paths.
setOfVars = m5.backDoor("X","Y")
print("The set of variables which satisfies the back-door criterion for (X, Y) is :", setOfVars)

The set of variables which satisfies the back-door criterion for (X, Y) is : {'C'}


The difference between this example and the previous one is that we added an arrow between $$B$$ and $$X$$ ( $$B \rightarrow X$$ ), this opens a new back-door path between $$X$$ and $$Y$$ that isn’t blocked by any colliders

$X \leftarrow B \leftarrow C \rightarrow Y$

We need to block the non-causal information that flows through it, controlling for $$B$$ closes this backdoor path (it prevents information from getting from $$X$$ to $$C$$). However, this action will open the back-door path that was formerly blocked by collider node $$B$$ that we are adjusting for now:

$X \leftarrow A \rightarrow B \leftarrow C \rightarrow Y$

And, in this case, in addition to $$B$$ we would also control for $$C$$ or for $$A$$ to reblock the path we opened and to block the new path. Another solution is to control for $$C$$ (it prevents information from getting from $$B$$ to $$Y$$) which satisfies the back-door criterion, it blocks the new path without reopening the one that is blocked by $$B$$.

### Example 6:

In [18]:

e6 = gum.fastBN("A->X;A->B;D->A;B->X;C->B;C->E;C->Y;D->C;E->Y;E->X;F->C;F->X;F->Y;G->X;G->Y;X->Y")
e6

Out[18]:

In [19]:

m6 = csl.CausalModel(e6)
cslnb.showCausalImpact(m6, "Y", doing="X",values={})


Causal Model
$$\begin{equation*}P( Y \mid \text{do}(X)) = \sum_{C,E,F,G}{P\left(Y\mid C,E,F,G,X\right) \cdot P\left(C,E,F,G\right)}\end{equation*}$$
Explanation : backdoor ['C', 'E', 'F', 'G'] found.
Y
X
0
1
0
0.50390.4961
1
0.50560.4944

Impact
In [20]:

# This function returns the set of variables which satisfies the back-door criterion for (X, Y)
# None if there are no back-door paths.
setOfVars = m6.backDoor("X","Y")
print("The set of variables which satisfies the back-door criterion for (X, Y) is :", setOfVars)

The set of variables which satisfies the back-door criterion for (X, Y) is : {'F', 'C', 'E', 'G'}


Back-door paths are: 1) - $$X \leftarrow G \rightarrow Y$$ 2) - $$X \leftarrow E \rightarrow Y$$ and any other back-door paths that go through $$E$$ 3) - $$X \leftarrow F \rightarrow Y$$ and any other back-door paths that go through $$F$$ 4) - Blocked by collider $$B$$ : $$X \leftarrow A \rightarrow B \leftarrow C \rightarrow Y$$ and any other back-door paths that go through $A$ will go through $$C$$ 5) - $$X \leftarrow B \leftarrow C \rightarrow Y$$ and any other back-door paths that go through $$B$$ will go through $$C$$ Two sets of variables that satisfy the back-door criterion are: * {$$C$$,$$E$$,$$F$$,$$G$$} blocking (1), (2), (3) and (5) * {$$A$$,$$B$$,$$E$$,$$F$$,$$G$$} blocking (1), (2), (3), (5), opening (4) and reblocking it.
