Customizing and exporting graphical models and CPTs as image (pdf, png)
|
|
|
In [1]:
from pylab import *
import matplotlib.pyplot as plt
In [2]:
import pyagrum as gum
import pyagrum.lib.notebook as gnb
In [3]:
bn=gum.fastBN("a->b->c->d;b->e->d->f;g->c")
gnb.flow.row(bn,gnb.getInference(bn))
customizing colours and width for model and inference
In [4]:
def nodevalue(n):
return 0.5 if n in "aeiou" else 0.7
def arcvalue(a):
return (10-a[0])*a[1]
def arcvalue2(a):
return (a[0]+a[1]+5)/22
gnb.showBN(bn,
nodeColor={n:nodevalue(n) for n in bn.names()},
arcWidth={a:arcvalue(a) for a in bn.arcs()},
arcLabel={a:f"v={arcvalue(a):02d}" for a in bn.arcs()},
arcColor={a:arcvalue2(a) for a in bn.arcs()})
In [5]:
gnb.showInference(bn,
targets={"a","g","f","b"},
evs={'e':0},
nodeColor={n:nodevalue(n) for n in bn.names()},
arcWidth={a:arcvalue(a) for a in bn.arcs()})
In [6]:
gnb.flow.row(gnb.getBN(bn,
nodeColor={n:nodevalue(n) for n in bn.names()},
arcWidth={a:arcvalue(a) for a in bn.arcs()}),
gnb.getInference(bn,
nodeColor={n:nodevalue(n) for n in bn.names()},
arcWidth={a:arcvalue(a) for a in bn.arcs()})
)
In [7]:
import matplotlib.pyplot as plt
mycmap=plt.get_cmap('Reds')
formyarcs=plt.get_cmap('winter')
gnb.flow.row(gnb.getBN(bn,
nodeColor={n:nodevalue(n) for n in bn.names()},
arcColor={a:arcvalue2(a) for a in bn.arcs()},
cmapNode=mycmap,
cmapArc=formyarcs),
gnb.getInference(bn,
nodeColor={n:nodevalue(n) for n in bn.names()},
arcColor={a:arcvalue2(a) for a in bn.arcs()},
arcWidth={a:arcvalue(a) for a in bn.arcs()},
cmapNode=mycmap,
cmapArc=formyarcs)
)
Modifying graph’s layout
Every graph or graphical models can be translated into a pyDot’s representaton (a pydot.Dot object). In this graphical representation, it is possible to manipulate the positions of the node. pyAgrum proposes two functions gum.utils.dot_layout to help modifying this layout.
Layout for Bayesian network
In [8]:
import pyagrum as gum
import pyagrum.lib.notebook as gnb
import pyagrum.lib.utils as gutils
import pyagrum.lib.bn2graph as gumb2g
bn=gum.fastBN("A->B<-C<-D")
bn2=gum.fastBN("A->B->C<-D")
graph=gumb2g.BN2dot(bn)
graph2=gumb2g.BN2dot(bn2)
l=gutils.dot_layout(graph)
print(f"Layout proposed by dot for BN :{l}")
gutils.apply_dot_layout(graph2,l)
graph3=gumb2g.BN2dot(bn2)
#l["C"],l["A"]=l["A"],l["C"]
l["D"],l["C"],l["B"],l["A"]=(gutils.DotPoint(0,0),
gutils.DotPoint(1,1),
gutils.DotPoint(2,2),
gutils.DotPoint(3,3))
gutils.apply_dot_layout(graph3,l)
gnb.flow.row(bn,bn2,graph2,graph3,
captions=["BN","BN2","BN2 with the same layoutas BN","Layout changed by hand"])
Layout proposed by dot for BN :{'D': DotPoint(x=0.375, y=2.25), 'A': DotPoint(x=1.375, y=1.25), 'B': DotPoint(x=0.875, y=0.25), 'C': DotPoint(x=0.375, y=1.25)}
Layout for other graphical models and for inference
In [9]:
import pyagrum as gum
import pyagrum.lib.notebook as gnb
import pyagrum.lib.utils as gutils
import pyagrum.lib.id2graph as gum2gr
model=gum.fastID("*D->$L<-E<-H->L;E->D")
gnb.flow.add(model)
gum.config.push()
gum.config['influenceDiagram','utility_shape']='diamond'
figure=gum2gr.ID2dot(model)
l=gutils.dot_layout(figure)
# changing LAYOUT
# making some horizontal space
for i,p in l.items():
l[i]=gutils.DotPoint(1.5*p.x,p.y)
# E at the vertical of L, at the horizontal of D
l['E']=gutils.DotPoint(l['L'].x,
l['D'].y)
# H symetric of D w.r.t (EL)
l['H']=gutils.DotPoint(2*l['E'].x-l['D'].x,l['D'].y)
gutils.apply_dot_layout(figure,l)
gnb.flow.add(figure)
gnb.flow.display()
gum.config.pop()
In [10]:
import pyagrum as gum
import pyagrum.lib.notebook as gnb
import pyagrum.lib.utils as gutils
import pyagrum.lib.id2graph as gum2gr
model=gum.fastID("*D->$L<-E<-H->L;E->D")
gnb.flow.add(gnb.getInference(model))
figure=gum2gr.LIMIDinference2dot(model,evs={},targets={},size=None,engine=None)
l=gutils.dot_layout(figure)
# changing LAYOUT
# making some horizontal space
for i,p in l.items():
l[i]=gutils.DotPoint(3*p.x,p.y)
# E at the vertical of L, at the horizontal of D
l['E']=gutils.DotPoint(l['L'].x,
l['D'].y)
l['D']=gutils.DotPoint(l['D'].x/2,l['D'].y)
l['H']=gutils.DotPoint(l['L'].x*3/2,
l['D'].y)
gutils.apply_dot_layout(figure,l)
gnb.flow.add(figure)
gnb.flow.display()
Exporting model and inference as image
Exporting as image (pdf, png, etc.) has been gathered in 2 functions : pyagrum.lib.image.export() and pyagrum.lib.image.exportInference(). The argument are the same as for pyagrum.notebook.show{Model} and pyagrum.notebook.show{Inference}.
In [11]:
import pyagrum.lib.image as gumimage
from IPython.display import Image # to display the exported images
In [12]:
gumimage.export(bn,"out/test_export.png")
Image(filename='out/test_export.png')
Out[12]:
In [13]:

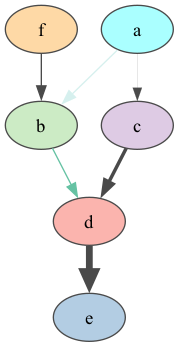

bn = gum.fastBN("a->b->d;a->c->d[3]->e;f->b")
gumimage.export(bn,"out/test_export.png",
nodeColor={'a': 1,
'b': 0.3,
'c': 0.4,
'd': 0.1,
'e': 0.2,
'f': 0.5},
arcColor={(0, 1): 0.2,
(1, 2): 0.5},
arcWidth={(0, 3): 0.4,
(3, 2): 0.5,
(2,4) :0.6})
Image(filename='out/test_export.png')
Out[13]:
In [14]:

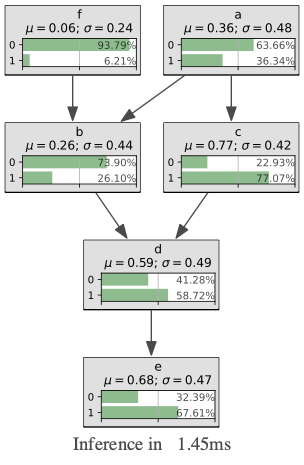

gumimage.exportInference(bn,"out/test_export.png")
Image(filename='out/test_export.png')
Out[14]:
In [15]:
gumimage.export(bn,"out/test_export.pdf")
Link to out/test_export.pdf
exporting inference with evidence
In [16]:
bn=gum.loadBN("res/alarm.dsl")
gumimage.exportInference(bn,"out/test_export.pdf",
evs={"CO":1,"VENTLUNG":1},
targets={"VENTALV",
"CATECHOL",
"HR",
"MINVOLSET",
"ANAPHYLAXIS",
"STROKEVOLUME",
"ERRLOWOUTPUT",
"HBR",
"PULMEMBOLUS",
"HISTORY",
"BP",
"PRESS",
"CO"},
size="15!")
Link to out/test_export.pdf
Other models
Other models can also use these functions.
In [17]:
infdiag=gum.loadID("res/OilWildcatter.bifxml")
gumimage.export(infdiag,"out/test_export.pdf")
Link to out/test_export.pdf
In [18]:
gumimage.exportInference(infdiag,"out/test_export.pdf")
Link to out/test_export.pdf
Exporting any object with toDot() method
In [19]:
import pyagrum.causal as csl
obs1 = gum.fastBN("Smoking->Cancer")
modele3 = csl.CausalModel(obs1, [("Genotype", ["Smoking","Cancer"])], True)
gumimage.export(modele3,"out/test_export.png") # a causal model has a toDot method.
Image(filename='out/test_export.png')
Out[19]:
In [20]:

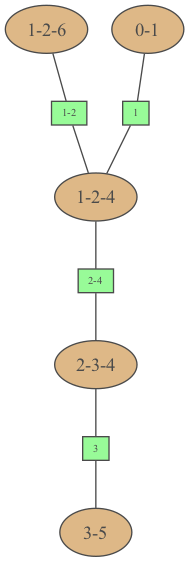

bn=gum.fastBN("a->b->c->d;b->e->d->f;g->c")
ie=gum.LazyPropagation(bn)
jt=ie.junctionTree()
gumimage.export(jt,"out/test_export.png") # a JunctionTree has a method jt.toDot()
Image(filename='out/test_export.png')
Out[20]:

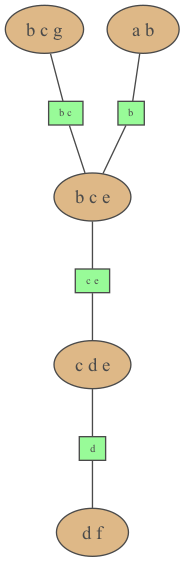

… or even a string in dot syntax
In [21]:
gumimage.export(jt.toDotWithNames(bn),"out/test_export.png") # jt.toDotWithNames(bn) creates a dot-string for a junction tree with names of variables
Image(filename='out/test_export.png')
Out[21]:
Exporting to pyplot
In [22]:
import matplotlib.pyplot as plt
bn=gum.fastBN("A->B->C<-D")
plt.imshow(gumimage.export(bn))
plt.show()
plt.imshow(gumimage.exportInference(bn,size="15!"))
plt.show()
plt.figure(figsize = (10,10))
plt.imshow(gumimage.exportInference(bn,size="15!"))
plt.show()
Exporting CPTs, sideBySide, explain.Information (and other html strings)
pyAgrum uses the package playwright in order to export html string. It proposes a function pyagrum.utils.async_html2image. In pyagrum.notebook, the functions get... return HTML objects. The functions show... display the result.
As a result, every pyagrum.lib.notebook.get... can be exported as pdf, png … using pyagrum.utils.async_html2image.
In [23]:
bn=gum.fastBN("A->B<-C",3)
await gutils.async_html2image(gnb.getTensor(bn.cpt("B")),"out/cpt_B_.pdf")
In [24]:
await gutils.async_html2image(gnb.getSideBySide(bn,bn.cpt("A"),bn.cpt("B"),bn.cpt("C")),"out/sideBySide.pdf")
In [25]:
import pyagrum.lib.explain as gexplain
await gutils.async_html2image(gexplain.getInformation(bn),"out/informationBN.pdf")
In [ ]:
