Quantum Bayesian Network Sampling (pyagrum.qBNSampling)
|
|
|
|
|
The pyagrum.qBNSampling module encodes a Bayesian network as a quantum circuit so that measuring the circuit samples from the network’s joint distribution. It also provides a quantum rejection-sampling inference engine that computes posterior distributions conditioned on evidence using Grover-based amplitude amplification.
Dependencies: qiskit, qiskit-aer, qiskit-ibm-runtime, scipy.
References
Circuit encoding: Borujeni et al., Quantum circuit representation of Bayesian networks, Expert Systems with Applications, 2021. arXiv:2004.14803
Quantum inference: Low, Yoder, Chuang, Quantum inference on Bayesian networks, Physical Review A, 2014. arXiv:1402.7359
In [1]:
import pyagrum as gum
import pyagrum.lib.notebook as gnb
import pyagrum.qBNSampling as qBNS
Part 1 — qBNMC: encoding a Bayesian network as a quantum circuit
Each variable in the BN is mapped to \(\lceil \log_2(|\text{dom}|) \rceil\) qubits. Its CPT is encoded as multi-qubit RY rotations: root nodes get unconditional rotations; non-root nodes get controlled rotations — one block per parent configuration, framed by X gates to select the correct control state.
Measuring the circuit returns a sample from the joint distribution of the network.
Illustrative example: 3-node BN
In [2]:
bn = gum.fastBN("A->B<-C", 2)
gnb.showBN(bn)
In [3]:
qbn = qBNS.qBNMC(bn)
print(f"Total qubits: {qbn.getTotNumQBits()}")
print(f"Qubit map (node id -> qubit ids): {qbn.n_qb_map}")
circuit = qbn.buildCircuit(add_measure=True)
Total qubits: 3
Qubit map (node id -> qubit ids): {0: [0], 1: [1], 2: [2]}
Running the circuit on the Aer simulator returns marginal probability vectors for each variable. Let us compare them with the exact marginals from LazyPropagation.
In [4]:

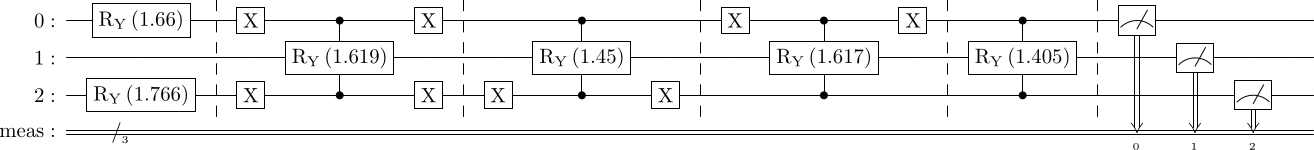

gnb.flow.row(gnb.getBN(bn), circuit.draw("mpl", scale=0.7))
Out[4]:
In [5]:
circuit.draw("latex")
Out[5]:
In [6]:
circuit.draw()
Out[6]:
┌────────────┐ ░ ┌───┐ ┌───┐ ░ ░ »
0: ┤ Ry(1.6603) ├─░─┤ X ├──────■───────┤ X ├─░────────────■─────────────░─»
└────────────┘ ░ └───┘┌─────┴──────┐└───┘ ░ ┌─────┴──────┐ ░ »
1: ───────────────░──────┤ Ry(1.6194) ├──────░──────┤ Ry(1.4498) ├──────░─»
┌────────────┐ ░ ┌───┐└─────┬──────┘┌───┐ ░ ┌───┐└─────┬──────┘┌───┐ ░ »
2: ┤ Ry(1.7663) ├─░─┤ X ├──────■───────┤ X ├─░─┤ X ├──────■───────┤ X ├─░─»
└────────────┘ ░ └───┘ └───┘ ░ └───┘ └───┘ ░ »
meas: 3/═══════════════════════════════════════════════════════════════════════»
»
« ┌───┐ ┌───┐ ░ ░ ┌─┐
« 0: ┤ X ├──────■───────┤ X ├─░───────■────────░─┤M├──────
« └───┘┌─────┴──────┐└───┘ ░ ┌─────┴──────┐ ░ └╥┘┌─┐
« 1: ─────┤ Ry(1.6169) ├──────░─┤ Ry(1.4045) ├─░──╫─┤M├───
« └─────┬──────┘ ░ └─────┬──────┘ ░ ║ └╥┘┌─┐
« 2: ───────────■─────────────░───────■────────░──╫──╫─┤M├
« ░ ░ ║ ║ └╥┘
«meas: 3/═════════════════════════════════════════════╩══╩══╩═
« 0 1 2 In [7]:
marginals = qbn.runBN(shots=10000)
In [8]:
ie = gum.LazyPropagation(bn)
ie.makeInference()
for name, tensor in marginals.items():
print(f"P({name})")
print(f" qBNMC (10 000 shots) : {[round(v, 4) for v in tensor.tolist()]}")
print(f" LazyPropagation : {[round(v, 4) for v in ie.posterior(name).tolist()]}")
print()
P(A)
qBNMC (10 000 shots) : [0.456, 0.544]
LazyPropagation : [0.4553, 0.5447]
P(B)
qBNMC (10 000 shots) : [0.5246, 0.4754]
LazyPropagation : [0.5294, 0.4706]
P(C)
qBNMC (10 000 shots) : [0.3925, 0.6075]
LazyPropagation : [0.4029, 0.5971]
Named example: Oil Company Stock Price (Borujeni et al., 2021)
A 4-node BN modelling the dependencies between Interest Rate (IR), Stock Market (SM), Oil Import (OI), and Stock Price (SP).
In [9]:
bn_oil = gum.fastBN("IR->SM->SP<-OI", 2)
bn_oil.cpt("IR")[:] = [0.75, 0.25]
bn_oil.cpt("SM")[:] = [[0.3, 0.7], [0.8, 0.2]]
bn_oil.cpt("OI")[:] = [0.6, 0.4]
bn_oil.cpt("SP")[:] = [[[0.1, 0.9], [0.3, 0.7]], [[0.4, 0.6], [0.7, 0.3]]]
gnb.showBN(bn_oil)
In [10]:
qbn_oil = qBNS.qBNMC(bn_oil)
print(f"Total qubits: {qbn_oil.getTotNumQBits()}")
qbn_oil.buildCircuit().draw("text")
Total qubits: 4
Out[10]:
┌─────────┐ ░ ┌───┐ ┌───┐ ░ ░ »
0: ─┤ Ry(π/3) ├───░─┤ X ├──────■───────┤ X ├─░───────■────────░──────»
└─────────┘ ░ └───┘┌─────┴──────┐└───┘ ░ ┌─────┴──────┐ ░ ┌───┐»
1: ───────────────░──────┤ Ry(1.9823) ├──────░─┤ Ry(0.9273) ├─░─┤ X ├»
░ └────────────┘ ░ └────────────┘ ░ └───┘»
2: ───────────────░──────────────────────────░────────────────░──────»
┌────────────┐ ░ ░ ░ ┌───┐»
3: ┤ Ry(1.3694) ├─░──────────────────────────░────────────────░─┤ X ├»
└────────────┘ ░ ░ ░ └───┘»
meas: 4/══════════════════════════════════════════════════════════════════»
»
« ░ ░ »
« 0: ────────────────────░──────────────────────────░────────────────────»
« ┌───┐ ░ ░ ┌───┐ »
« 1: ──────■───────┤ X ├─░────────────■─────────────░─┤ X ├──────■───────»
« ┌─────┴──────┐└───┘ ░ ┌─────┴──────┐ ░ └───┘┌─────┴──────┐»
« 2: ┤ Ry(2.4981) ├──────░──────┤ Ry(1.9823) ├──────░──────┤ Ry(1.7722) ├»
« └─────┬──────┘┌───┐ ░ ┌───┐└─────┬──────┘┌───┐ ░ └─────┬──────┘»
« 3: ──────■───────┤ X ├─░─┤ X ├──────■───────┤ X ├─░────────────■───────»
« └───┘ ░ └───┘ └───┘ ░ »
«meas: 4/════════════════════════════════════════════════════════════════════»
« »
« ░ ░ ┌─┐
« 0: ──────░────────────────░─┤M├─────────
« ┌───┐ ░ ░ └╥┘┌─┐
« 1: ┤ X ├─░───────■────────░──╫─┤M├──────
« └───┘ ░ ┌─────┴──────┐ ░ ║ └╥┘┌─┐
« 2: ──────░─┤ Ry(1.1593) ├─░──╫──╫─┤M├───
« ░ └─────┬──────┘ ░ ║ ║ └╥┘┌─┐
« 3: ──────░───────■────────░──╫──╫──╫─┤M├
« ░ ░ ║ ║ ║ └╥┘
«meas: 4/══════════════════════════╩══╩══╩══╩═
« 0 1 2 3 In [11]:
marginals_oil = qbn_oil.runBN(shots=10000)
In [12]:
ie_oil = gum.LazyPropagation(bn_oil)
ie_oil.makeInference()
gnb.sideBySide(
marginals_oil["SP"],
ie_oil.posterior("SP"),
captions=["qBNMC — 10 000 shots", "LazyPropagation — exact"],
)
Multi-state variables: Naive Bayes Bankruptcy Prediction
Variables with more than 2 states require \(\lceil \log_2(|\text{dom}|) \rceil > 1\) qubits. Here node B has 2 states and several children have 3 states (2 qubits each).
In [13]:
bn_bk = gum.fastBN("B->AU; B->IT; B->CH[3]; B->LM[3]")
bn_bk.generateCPTs()
gnb.showInference(bn_bk)
In [14]:
qbn_bk = qBNS.qBNMC(bn_bk)
print(f"Total qubits: {qbn_bk.getTotNumQBits()}")
print(f"Qubit widths: { {bn_bk.variable(n).name(): qbn_bk.getWidth(n) for n in bn_bk.nodes()} }")
qbn_bk.buildCircuit().draw("text")
Total qubits: 7
Qubit widths: {'B': 1, 'AU': 1, 'IT': 1, 'CH': 2, 'LM': 2}
Out[14]:
┌────────────┐ ░ ┌───┐ ┌───┐ ░ ░ ┌───┐»
0: ┤ Ry(1.9209) ├─░─┤ X ├──────■───────┤ X ├─░───────■────────░─┤ X ├»
└────────────┘ ░ └───┘ │ └───┘ ░ │ ░ └───┘»
1: ───────────────░────────────┼─────────────░───────┼────────░──────»
░ ┌─────┴──────┐ ░ ┌─────┴──────┐ ░ »
2: ───────────────░──────┤ Ry(2.2354) ├──────░─┤ Ry(1.8533) ├─░──────»
░ └────────────┘ ░ └────────────┘ ░ »
3_0: ───────────────░──────────────────────────░────────────────░──────»
░ ░ ░ »
3_1: ───────────────░──────────────────────────░────────────────░──────»
░ ░ ░ »
4_0: ───────────────░──────────────────────────░────────────────░──────»
░ ░ ░ »
4_1: ───────────────░──────────────────────────░────────────────░──────»
░ ░ ░ »
meas: 7/══════════════════════════════════════════════════════════════════»
»
« ┌───┐ ░ »
« 0: ───────■───────────■──────■────────■─────────■──┤ X ├─░─»
« │ │ │ │ │ └───┘ ░ »
« 1: ───────┼───────────┼──────┼────────┼─────────┼────────░─»
« │ │ │ │ │ ░ »
« 2: ───────┼───────────┼──────┼────────┼─────────┼────────░─»
« │ │ │ │ │ ░ »
« 3_0: ───────┼───────────┼──────┼────────┼─────────┼────────░─»
« │ │ │ │ │ ░ »
« 3_1: ───────┼───────────┼──────┼────────┼─────────┼────────░─»
« ┌──────┴──────┐ │ ┌─┴─┐ │ ┌─┴─┐ ░ »
« 4_0: ┤ Ry(0.84448) ├────■────┤ X ├──────■───────┤ X ├──────░─»
« └─────────────┘┌───┴───┐└───┘┌─────┴──────┐└───┘ ░ »
« 4_1: ───────────────┤ Ry(0) ├─────┤ Ry(1.8522) ├───────────░─»
« └───────┘ └────────────┘ ░ »
«meas: 7/════════════════════════════════════════════════════════»
« »
« ░ ┌───┐ »
« 0: ───────■───────────■──────■────────■─────────■───░─┤ X ├──────■───────»
« │ │ │ │ │ ░ └───┘┌─────┴──────┐»
« 1: ───────┼───────────┼──────┼────────┼─────────┼───░──────┤ Ry(1.8925) ├»
« │ │ │ │ │ ░ └────────────┘»
« 2: ───────┼───────────┼──────┼────────┼─────────┼───░────────────────────»
« │ │ │ │ │ ░ »
« 3_0: ───────┼───────────┼──────┼────────┼─────────┼───░────────────────────»
« │ │ │ │ │ ░ »
« 3_1: ───────┼───────────┼──────┼────────┼─────────┼───░────────────────────»
« ┌──────┴──────┐ │ ┌─┴─┐ │ ┌─┴─┐ ░ »
« 4_0: ┤ Ry(0.85165) ├────■────┤ X ├──────■───────┤ X ├─░────────────────────»
« └─────────────┘┌───┴───┐└───┘┌─────┴──────┐└───┘ ░ »
« 4_1: ───────────────┤ Ry(0) ├─────┤ Ry(1.8938) ├──────░────────────────────»
« └───────┘ └────────────┘ ░ »
«meas: 7/══════════════════════════════════════════════════════════════════════»
« »
« ┌───┐ ░ ░ ┌───┐ »
« 0: ┤ X ├─░────────■────────░─┤ X ├──────■───────────■──────■──»
« └───┘ ░ ┌──────┴──────┐ ░ └───┘ │ │ │ »
« 1: ──────░─┤ Ry(0.90394) ├─░────────────┼───────────┼──────┼──»
« ░ └─────────────┘ ░ │ │ │ »
« 2: ──────░─────────────────░────────────┼───────────┼──────┼──»
« ░ ░ ┌─────┴──────┐ │ ┌─┴─┐»
« 3_0: ──────░─────────────────░──────┤ Ry(1.4916) ├────■────┤ X ├»
« ░ ░ └────────────┘┌───┴───┐└───┘»
« 3_1: ──────░─────────────────░────────────────────┤ Ry(0) ├─────»
« ░ ░ └───────┘ »
« 4_0: ──────░─────────────────░──────────────────────────────────»
« ░ ░ »
« 4_1: ──────░─────────────────░──────────────────────────────────»
« ░ ░ »
«meas: 7/═══════════════════════════════════════════════════════════»
« »
« ┌───┐ ░ »
« 0: ───────■─────────■──┤ X ├─░───────■───────────■──────■───────■──────»
« │ │ └───┘ ░ │ │ │ │ »
« 1: ───────┼─────────┼────────░───────┼───────────┼──────┼───────┼──────»
« │ │ ░ │ │ │ │ »
« 2: ───────┼─────────┼────────░───────┼───────────┼──────┼───────┼──────»
« │ ┌─┴─┐ ░ ┌─────┴──────┐ │ ┌─┴─┐ │ »
« 3_0: ───────■───────┤ X ├──────░─┤ Ry(1.5135) ├────■────┤ X ├─────■──────»
« ┌──────┴──────┐└───┘ ░ └────────────┘┌───┴───┐└───┘┌────┴─────┐»
« 3_1: ┤ Ry(0.83585) ├───────────░───────────────┤ Ry(0) ├─────┤ Ry(2.63) ├»
« └─────────────┘ ░ └───────┘ └──────────┘»
« 4_0: ──────────────────────────░─────────────────────────────────────────»
« ░ »
« 4_1: ──────────────────────────░─────────────────────────────────────────»
« ░ »
«meas: 7/════════════════════════════════════════════════════════════════════»
« »
« ░ ┌─┐
« 0: ──■───░─┤M├──────────────────
« │ ░ └╥┘┌─┐
« 1: ──┼───░──╫─┤M├───────────────
« │ ░ ║ └╥┘┌─┐
« 2: ──┼───░──╫──╫─┤M├────────────
« ┌─┴─┐ ░ ║ ║ └╥┘┌─┐
« 3_0: ┤ X ├─░──╫──╫──╫─┤M├─────────
« └───┘ ░ ║ ║ ║ └╥┘┌─┐
« 3_1: ──────░──╫──╫──╫──╫─┤M├──────
« ░ ║ ║ ║ ║ └╥┘┌─┐
« 4_0: ──────░──╫──╫──╫──╫──╫─┤M├───
« ░ ║ ║ ║ ║ ║ └╥┘┌─┐
« 4_1: ──────░──╫──╫──╫──╫──╫──╫─┤M├
« ░ ║ ║ ║ ║ ║ ║ └╥┘
«meas: 7/═════════╩══╩══╩══╩══╩══╩══╩═
« 0 1 2 3 4 5 6 In [15]:
marginals_bk = qbn_bk.runBN(shots=10000)
ie_bk = gum.LazyPropagation(bn_bk)
ie_bk.makeInference()
gnb.sideBySide(
marginals_bk["CH"],
ie_bk.posterior("CH"),
captions=["qBNMC — 10 000 shots", "LazyPropagation — exact"],
)
Part 2 — qBNRejection: inference with evidence
qBNRejection implements quantum rejection sampling (Low et al., 2014). Given evidence \(e\), it uses the Grover iterate \(G = S_e \, A^{-1} \, S_0 \, A\) to amplify the amplitude of states consistent with \(e\), where:
\(A\) is the quantum circuit encoding of the BN (built by
qBNMC);\(S_e\) is a phase flip on the evidence qubits;
\(S_0\) is a phase flip on the all-zero state.
Each call to getSample applies \(G^{\lceil 2^k \rceil}\) for increasing \(k\) until a measurement consistent with the evidence is obtained (Algorithm 1). makeInference accumulates max_iter such samples to estimate the posterior.
Basic usage: 3-node BN with evidence
In [16]:
bn = gum.fastBN("A->B<-C", 2)
evidence = {"B": 0}
# Exact reference
ie = gum.LazyPropagation(bn)
ie.setEvidence(evidence)
ie.makeInference()
print("Exact P(A | B=0):", ie.posterior("A"))
Exact P(A | B=0):
A │
0 │1 │
─────────│─────────│
0.4511 │ 0.5489 │
In [17]:
qbn = qBNS.qBNMC(bn)
qinf = qBNS.qBNRejection(qbn)
qinf.setEvidence(evidence)
qinf.setMaxIter(500)
qinf.makeInference()
Out[17]:
{'A': [0.45200000000000035, 0.5480000000000004],
'B': [1.0000000000000007, 0.0],
'C': [0.44200000000000034, 0.5580000000000004]}
In [18]:
gnb.sideBySide(
qinf.posterior("A"),
ie.posterior("A"),
captions=["qBNRejection — 500 samples", "LazyPropagation — exact"],
)
Restricting to the relevant subgraph: useFragmentBN
For a query involving only a subset of nodes, useFragmentBN builds a minimal BayesNetFragment containing only the ancestors of the target and evidence nodes. This reduces the number of qubits and speeds up the circuit.
In [19]:
# Larger BN: A->B->C->H; I->H; A->D->C; D->E; G->F->E
bn_large = gum.fastBN("A->B->C->H;I->H;A->D->C;D->E;G->F->E", 2)
gnb.showBN(bn_large, size=8)
In [20]:
evidence_large = {"H": 0, "A": 1}
target = "D"
qbn_large = qBNS.qBNMC(bn_large)
qinf_large = qBNS.qBNRejection(qbn_large)
qinf_large.setEvidence(evidence_large)
# Restrict the circuit to the ancestors of {target} ∪ evidence
qinf_large.useFragmentBN(target={target})
print(f"Full BN: {bn_large.size()} nodes, {qbn_large.getTotNumQBits()} qubits")
print(f"Fragment: {qinf_large.qbn.bn.size()} nodes, {qinf_large.qbn.getTotNumQBits()} qubits")
gnb.showBN(qinf_large.qbn.bn)
Full BN: 9 nodes, 9 qubits
Fragment: 6 nodes, 6 qubits
In [21]:
qinf_large.setMaxIter(500)
qinf_large.makeInference()
ie_large = gum.LazyPropagation(bn_large)
ie_large.setEvidence(evidence_large)
ie_large.makeInference()
gnb.sideBySide(
qinf_large.posterior(target),
ie_large.posterior(target),
captions=[f"qBNRejection — P({target} | H=0, A=1)", "LazyPropagation — exact"],
)
Named example: 4-node Oil BN with evidence
In [22]:
bn_oil = gum.fastBN("IR->SM->SP<-OI", 2)
bn_oil.cpt("IR")[:] = [0.75, 0.25]
bn_oil.cpt("SM")[:] = [[0.3, 0.7], [0.8, 0.2]]
bn_oil.cpt("OI")[:] = [0.6, 0.4]
bn_oil.cpt("SP")[:] = [[[0.1, 0.9], [0.3, 0.7]], [[0.4, 0.6], [0.7, 0.3]]]
evidence_oil = {"SP": 1}
target_oil = "OI"
ie_oil = gum.LazyPropagation(bn_oil)
ie_oil.setEvidence(evidence_oil)
ie_oil.makeInference()
print(f"Exact P({target_oil} | SP=1) = {ie_oil.posterior(target_oil)}")
Exact P(OI | SP=1) =
OI │
0 │1 │
─────────│─────────│
0.7336 │ 0.2664 │
In [23]:
qbn_oil = qBNS.qBNMC(bn_oil)
qinf_oil = qBNS.qBNRejection(qbn_oil)
qinf_oil.setEvidence(evidence_oil)
qinf_oil.useFragmentBN(target={target_oil})
qinf_oil.setMaxIter(500)
qinf_oil.makeInference()
gnb.sideBySide(
qinf_oil.posterior(target_oil),
ie_oil.posterior(target_oil),
captions=[f"qBNRejection — P({target_oil} | SP=1)", "LazyPropagation — exact"],
)
QBN Summary
Class |
Purpose |
Key method |
|---|---|---|
|
Encode BN as quantum circuit |
|
|
Posterior inference with evidence |
|
Useful workflow:
Build
qBNMC(bn)— circuit encoding.Check marginals via
runBN()(no evidence).Build
qBNRejection(qbn)and calluseFragmentBN(target, evidence)to reduce circuit size.setEvidence(),setMaxIter(),makeInference(),posterior(node).
In [ ]:
